Worlds Tallest Ceramic Facade | Wasl Tower | Dubai |UNStudio

The wasl Tower in Dubai | World’s Tallest Ceramic Facades | UNStudio

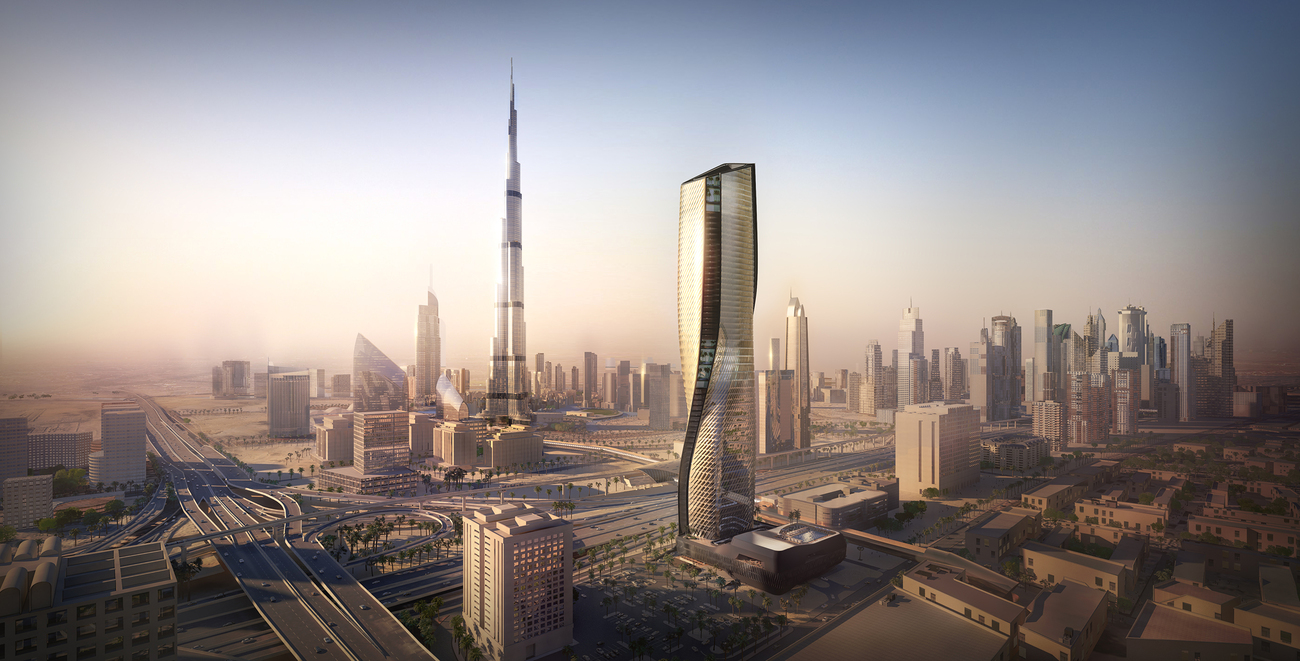

wasl Tower is a slender 300-meter-tall super-high-rise that was conceptualized by UNStudio, in collaboration with Werner Sobek. The building is located in an exceptional central position in Dubai’s network - along Sheikh Zayed Road, the main thoroughfare that connects the Emirates north to south - and directly opposite the Burj Khalifa and when completed will be one of the world’s tallest ceramic facades. SURFACES REPORTER (SR) has brought to you all information regarding this ceramic super skyscrapper that is expected to be completed in Aug 2021.

Impressive Infrastructure

wasl Tower in Dubai
UNStudio was invited by the wasl Development Group to design a new kind of high-rise for the city of Dubai that would act as a benchmark for both the region and for the wasl Development Group itself.

Dubai’s reputation as a transfer hub is rapidly transforming into one of a long stay destination, especially during the cooler winter months. The city also enjoys an impressive infrastructure. When arriving at night by plane or car it resembles an ever evolving organism in the dark desert; connecting places, people and culture.

wasl Tower in Dubai

The design concept for wasl Tower - a slender 300-meter-tall super-high-rise - reflects the notion of these connections.

A Virtual Tour to wasl Tower



Adopting a classic ‘contrapposto’ movement, the mixed-use tower faces in almost every direction and offers public areas high up in the building.

wasl Tower in Dubai

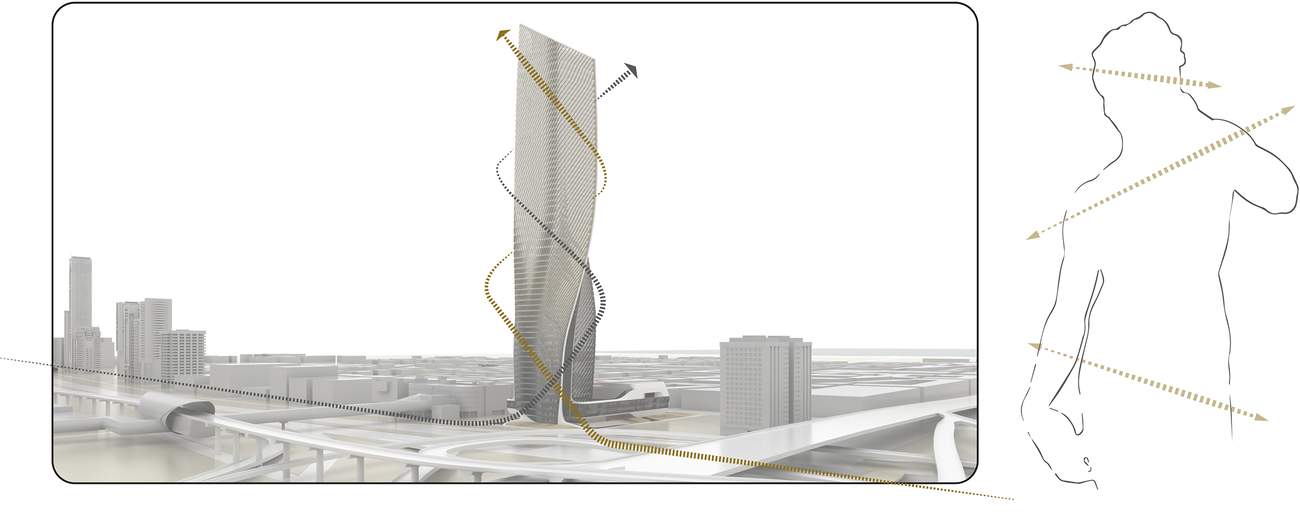

Wasl Tower_Contraposto

Clean Materials, Good Acoustics and Interactive Light levels

wasl Tower in Dubai
Ben van Berkel: “As the project strongly relates to and interconnects with Dubai’s urban experience, the aim is to make a visit to the wasl Tower as attractive and contemporary as possible. As such a dedicated concept of health, comfort and well-being throughout was developed for the building.”

UNStudio’s design is closely interlinked with the engineering and sustainability concept developed by Werner Sobek. This close cooperation defines scale, light, building physics and materialisation. In addition, smart access, communication and security provide a seamless technological base which is integrated with the architecture

wasl Tower in Dubai

Clean materials, interactive light levels, in addition to good acoustics are implemented in all spaces throughout the building. Particularly on the public levels, when combined with a specific food experience, hosting and aesthetics, they will result in a seductive activation of the human senses.

Clay- as a Basic Material

wasl Tower in DubaiWasl Tower_Facade Rationalisation

wasl Tower will be one of the world’s tallest ceramic facades. In consultation with the client, clay was chosen as a basic material, as such the facade fins will be manufactured as low-tech glazed ceramic elements.

wasl Tower in Dubai

The geometry of the tower achieved its holistic appearance by means of innovative parametric design and high-tech engineering. The available sustainable measures required in the broader region have been seamlessly implemented into the design.

wasl Tower in Dubai

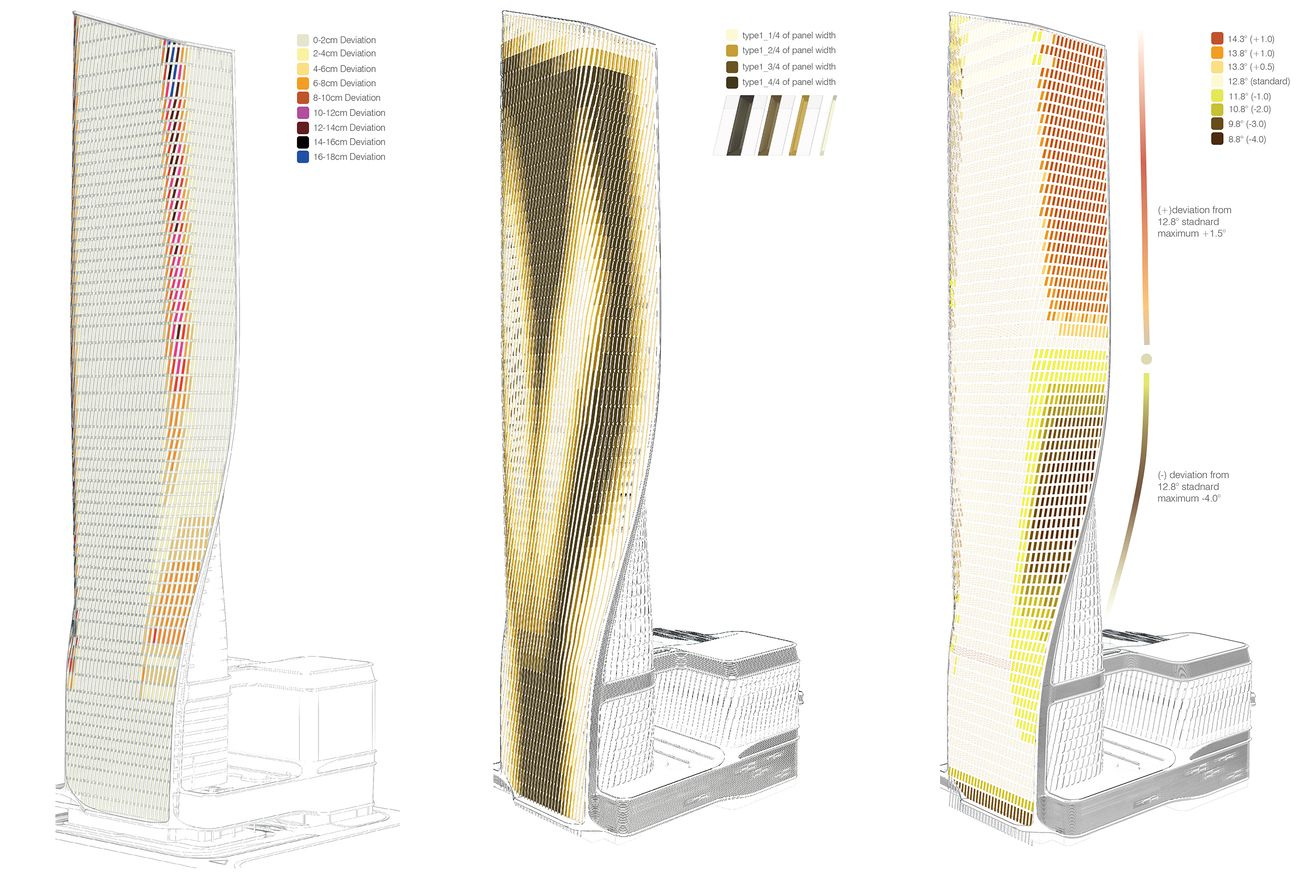

Wasl Tower_Facade Optimization



On the facade a fine lace of inclined fins over the basic skin literally veils the geometry and provides the required ‘closed’ surfaces. These fins not only provide shade, but also reflect daylight deep into the tower’s interior.

Vertical Boulevard

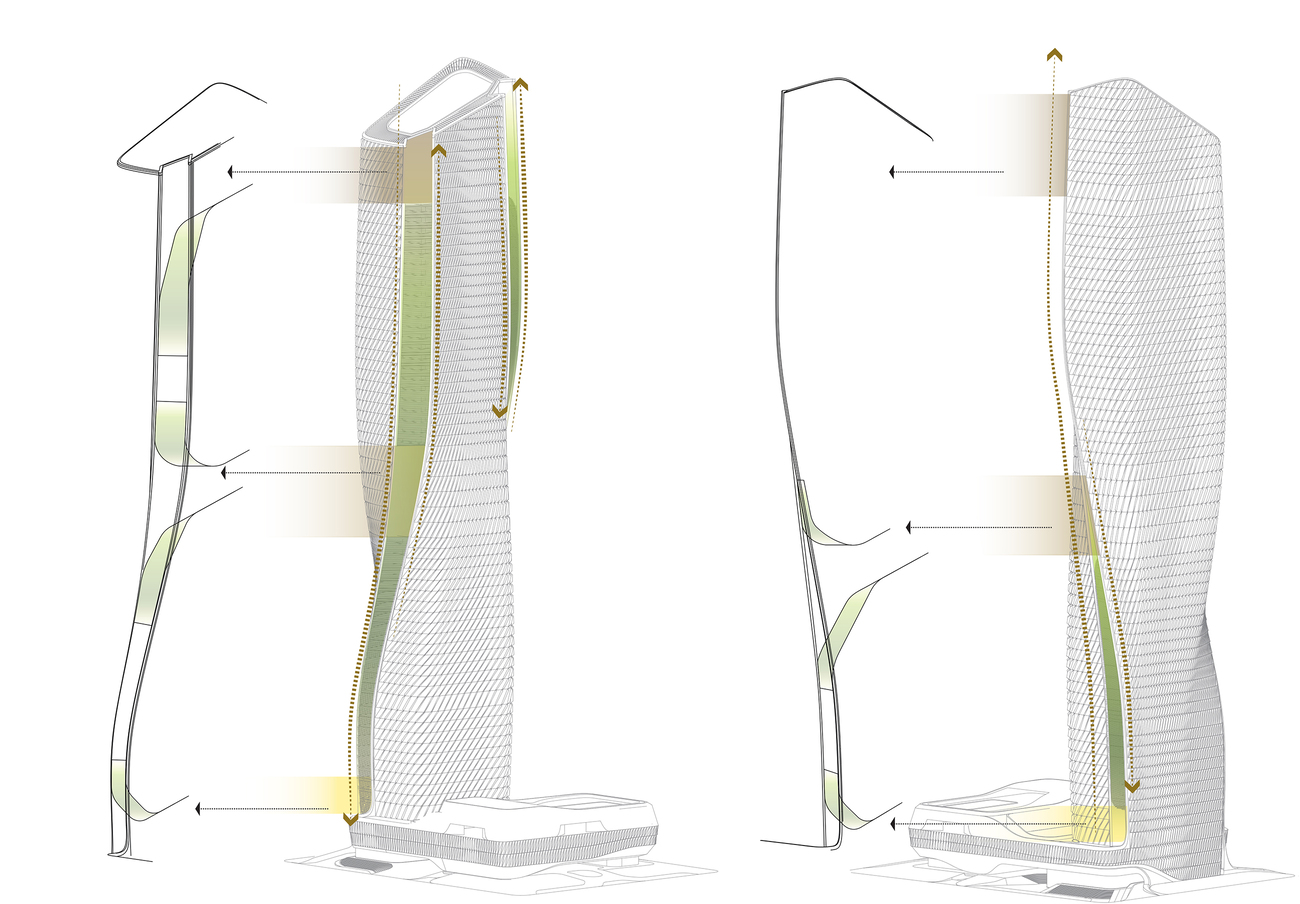

Wasl Tower_Vertical Boulevards

Wasl Tower-Vertical Boulevards

The open seam that runs the full height of the tower forms a ‘vertical boulevard’, which is topped by infinity pools on the tower roof. This seam is created by a stacking of outdoor balconies and forms a green vein which also affords a glimpse of the interior of the building. The boulevard connects the outdoor with the indoor and is a unique feature for the region.

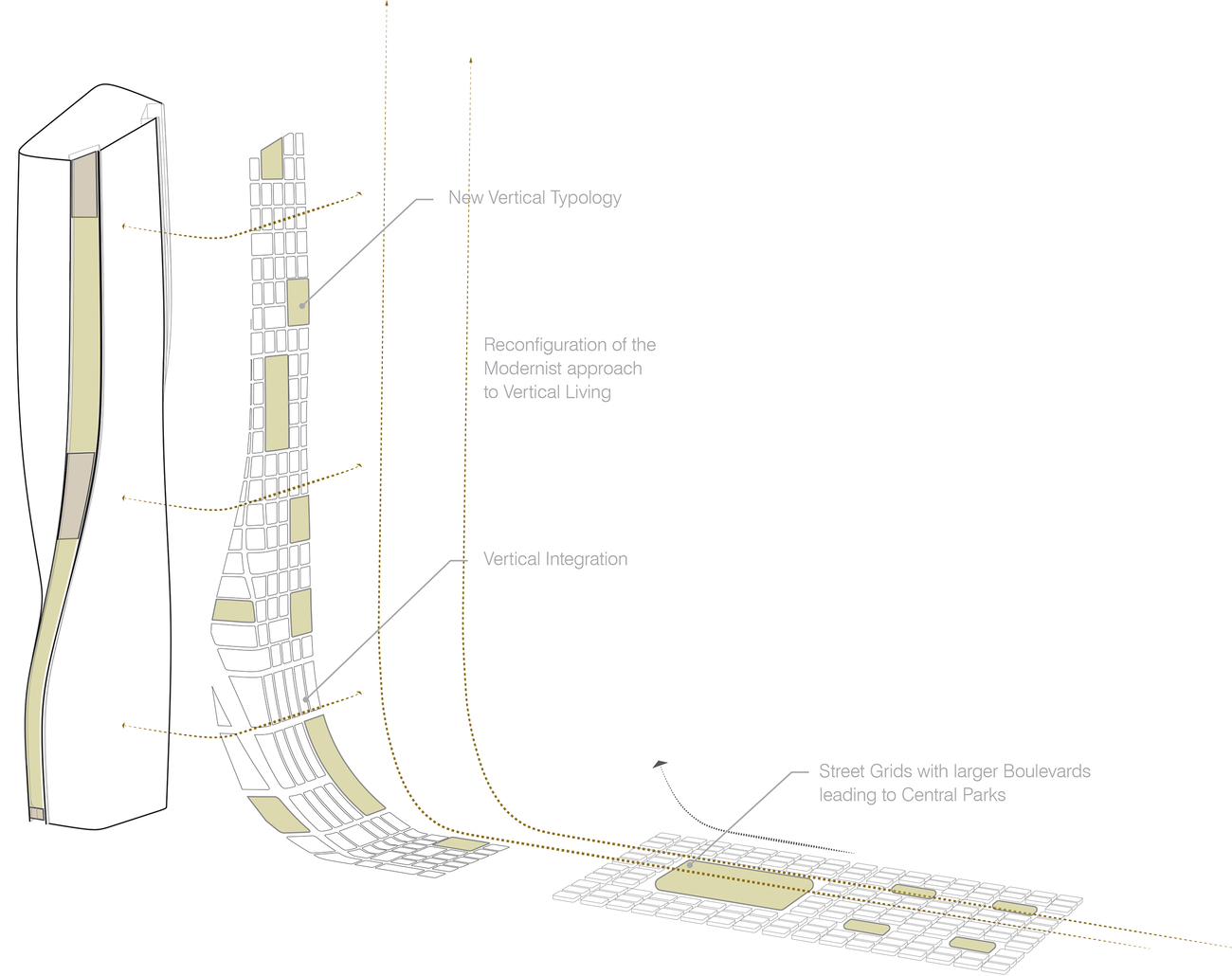

Wasl Tower_Vertical UrbanscapeWasl Tower_Vertical Urbanscape.

Facade lighting housed behind the fins and developed with Arup Lighting, is programmed as a rhythmic animation that breathes with the cadence of this 24-hour metropole and provides a visual connection to the city.

This facade lighting is powered the energy cube pv panels located on the car park building.
Wasl Tower_Environmental AnalysisWasl Tower_Environmental Analysis

The inside of the tower is equally sustainable. The mixed-use programme, comprising offices, guest rooms, public areas and apartments, presented a challenging core configuration. A smart structural concept - with three 300 metre high shear walls in the core that connect 4 large outriggers on strategic levels - gives the tower an almost free, highly efficient floorplate.

Meanwhile a vertical transport strategy is implemented to facilitate separate access to the various programmes. Three high-speed express lifts connect the four main lobbies (ground / spa /sky and rooftop) which contain most of the public programme and the main access for the hotel (at 150 metres). Four office and four guestroom lifts share the same lift shaft, while the residential apartments on the higher levels have their own designated lift-group, making direct access via the basement parking possible.

In total the building provides 17 lifts, of which 5 are service elevators.

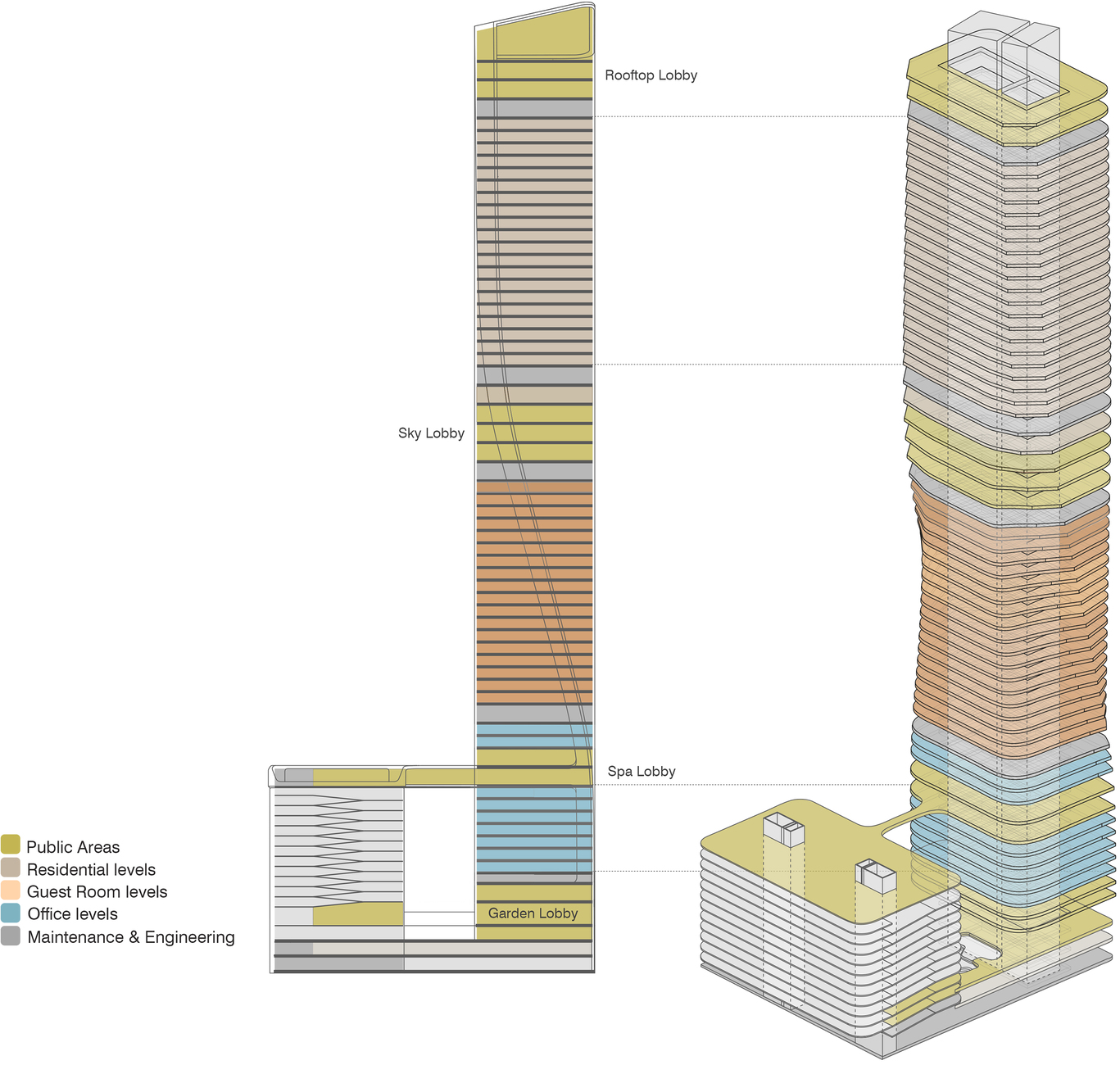

Wasl Tower_ProgrammeWasl Tower_Programme

The tower is supported by a low rise car-park building which, uniquely, also houses a large, column-free ballroom on the first floor. Programming this element in this location provided the advantage that the ground floor lobby now spans the full premises and creates a ‘walled’ garden, providing shade and cooling, even during the summer months.

The roof of the car park building is a large outdoor pool deck and is connected to the spa lobby in the tower via a pedestrian bridge, which provides access for all guests and visitors.

Guest Experience

Wasl Tower-GoldenRaysWasl Tower-GoldenRays

Mandarin Oriental, one of the world’s top hospitality brands, will operate the full building and will establish its MO@Dubai hotel here, with 250+ luxury 5* guest rooms.

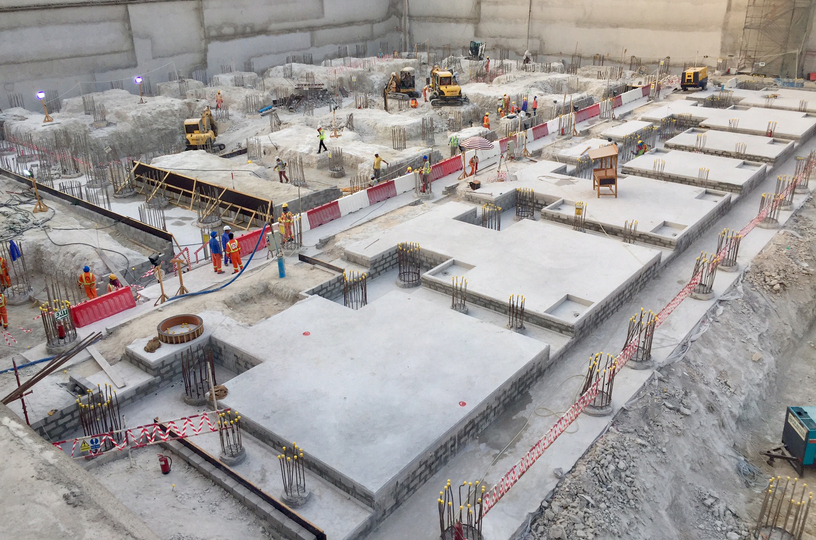

Construction started in 2016. The general contractor Arabtec was appointed to start main works in 2017.

*Text and Photo Courtesy- UNStudio

*CGI Visualisations Credit: Methanoia and Plompmozes

Project Details:

Client: wasl Asset Management Group
Location: Sheikh Zayed Road, Dubai, UAE
Building surface: 106.534 m2 GFA / 168.081 m2 BUA
Building volume: 840.000 m3
Building site: 8.785 m2
Building height: 302m.
Programme: Mixed-use
Operator: Mandarin Oriental Hospitality Group
Contribution UNStudio: Lead Consultant, Lead Architect, Architect, Interior Design Residential
Lead Consultant engineering: Werner Sobek, Dubai/Stuttgart
Lead Consultant design: UNStudio, Dubai/Amsterdam
Architecture: UNStudio, Amsterdam
Engineering & Sustainability: Werner Sobek, Dubai/Stuttgart
Planning time: 2014 – 2016
Construction start: 2016
Anticipated Finish Date: Aug 2021
