Located in Ahmedabad, the cultural and economic centre of Gujarat, the corporate office for Monte Carlo has been crafted to embrace the social and ethnic lineage of the city. Conceived and designed by the dexterous team of Edifice Consultants Pvt. Ltd., the project features a unique quilt-patterned façade with several sustainable features. Read more about the project below at SURFACES REPORTER (SR) through the information provided by the firm:
Also Read: Multiple Layers of Exposed Brick Act As Buffer Spaces In This Corporate Office Within Dense Urban Fabric | Ahmedabad | UA Lab

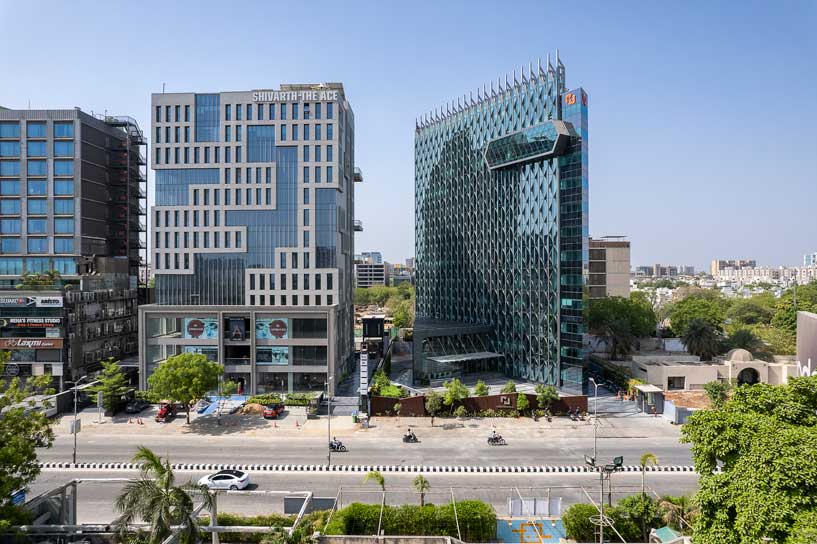

Spread over a sumptuous area of 0.60 acres, the 38m X 61m parcel of land served as the site for the project. The site has been strategically located abutting a 36m wide road.
The contemporary structure has been fabricated whilst preserving the intrinsic historic essence of its context. The striking design of the building encapsulates the essence of the reputed infrastructure company, seamlessly intertwined with the traditionally sensitive design narrative of the city of Ahmedabad.
The conception of the form was unveiled through optimising existing site conditions to maintain appropriate road frontage and allow future road widening along the building frontage. The site situated along the East – West axis necessitated climate-responsive design interventions and sensitive zoning. The building orientation has been optimised to minimise the permeation of heat gain into the interior spaces
Building Orientation To Capture Sweeping Views
The angular configuration of the building has been tactically conceived to capture vibrant and panoramic exterior views whilst limiting the exposure to glare from the South facade. By screening the Northern and Eastern sides of the building and orienting the primary façade towards the Northeast, diffused and glare-free daylight has been manoeuvred into the interior spaces.
The form of the building has been perceived as a response to accommodate the prevailing wind pattern of the area as a dynamic design element.
Also Read: Aedas Incorporates Green Gardens At The South Corner of New Tall Office Towers in Shanghai, China
Quilted Patterned Facade
The diverse heritage of the walled city of Ahmedabad has been integrated with the geometrical conception of the form. The city has been envisaged as an amalgamation of various villages, spawning over an area of 464 sq.km. These villages seem innately interweaved into each other like patchwork in a quilt. The quilted pattern of the façade is a reflection of this vision.
The atypical façade has been crafted through triangular tessellations, interpretive of the famous kite-flying festival in the city, Uttarayan. Ahmedabad, once a leading diamond manufacturing hub, served as a prominent diamond cutting centre globally.

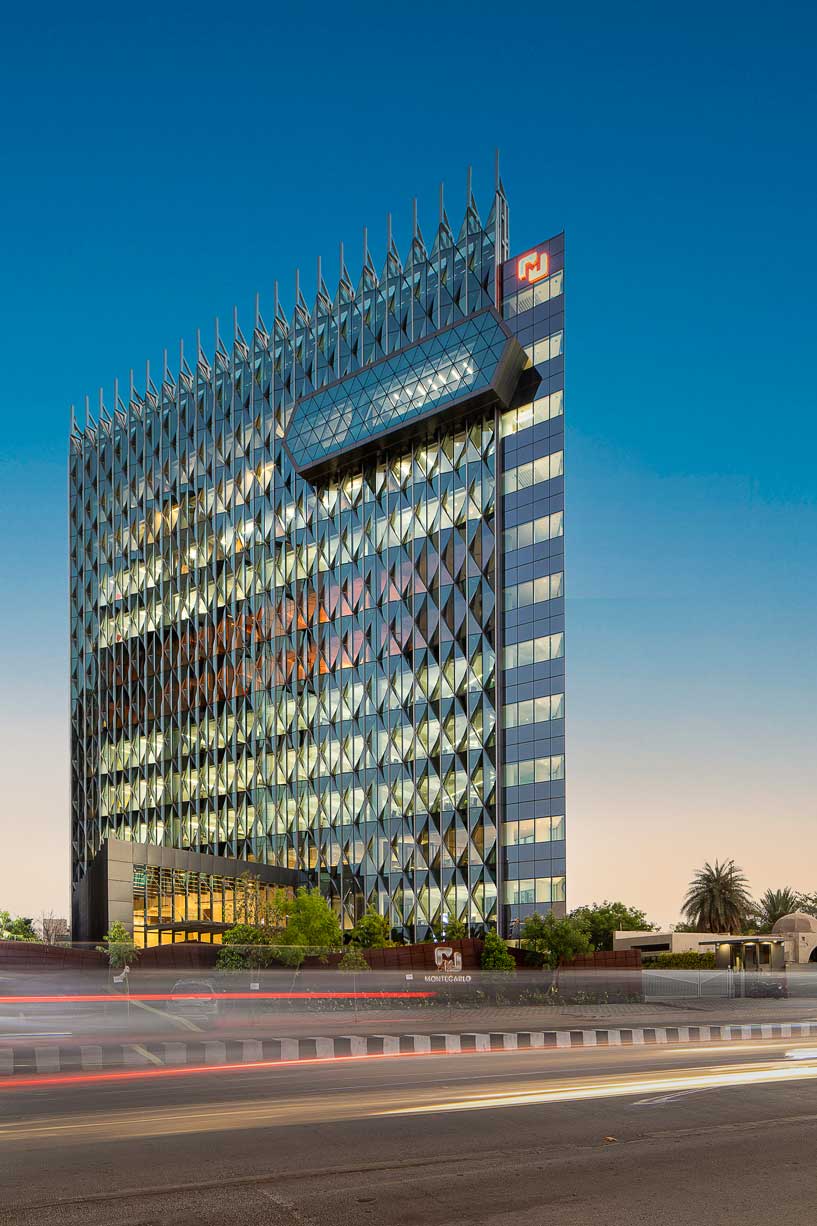

The fabrication of the peculiar cut-form of the strongest gemstone has been superimposed on the façade, maximising natural light into the building by intricate articulation of every facet of the structure such that every surface on the façade has the potential to change a light ray’s plane of travel. The precise incisions of the glass envelope wrapping the building are a manifestation of the multifaceted diamond form. The robust form of the building, exhibiting a unique glass façade composed of rhomboid fractals, gleaming in its iconic glory, reveals the illusion of the celebrated heritage of the city in a modern assemblage.
Play of Light and Shadow in the Interiors

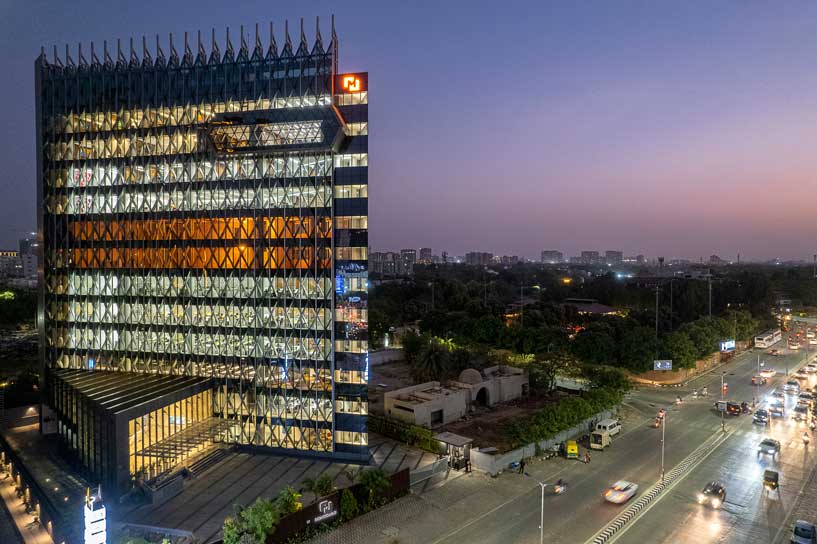

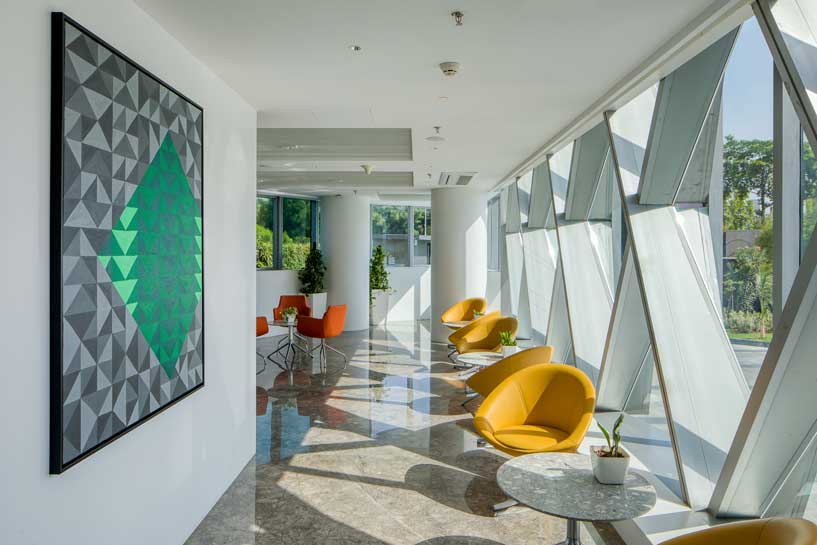

The triangulations of the glass façade render the interior spaces with a unique play of light and shadow. The transparent envelope with distinct angular indentations unravels exclusive exterior views from indoor spaces.

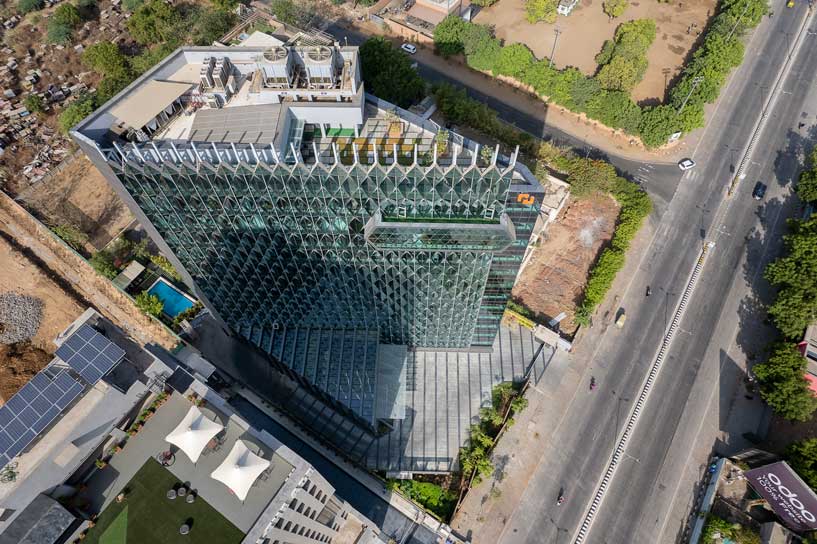

The vertical zoning of the building has been worked out to incorporate a café on the third floor, office and corporate activity from the fourth to the twelfth floor along with a terrace garden crowning the structure.
Advanced Material Palette With Biophilic designs

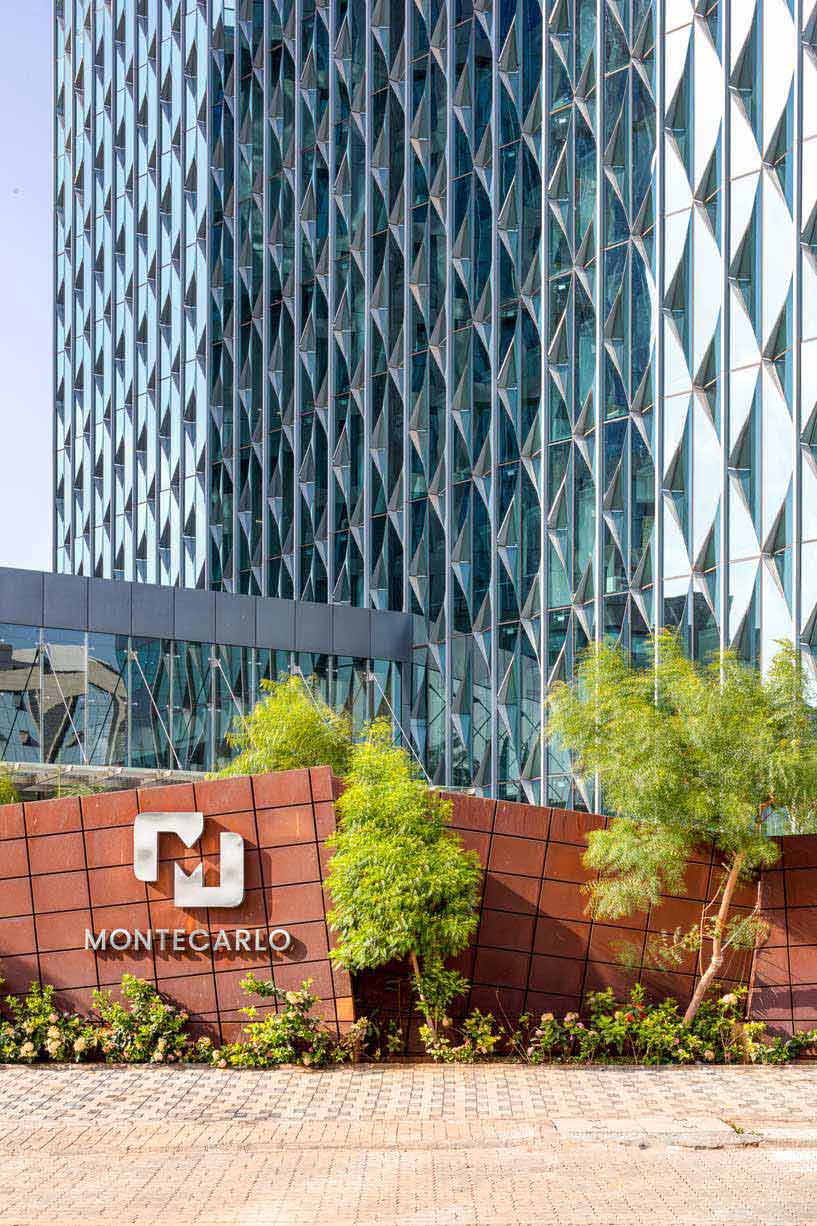

An innovative material palette has been conceived for the project. The dead core walls on the South and Southwest have been cladded with solid and perforated aluminium panels. These panels have been designed to project from the facade in a triangulated geometry, creating a sense of texture in the elevation.

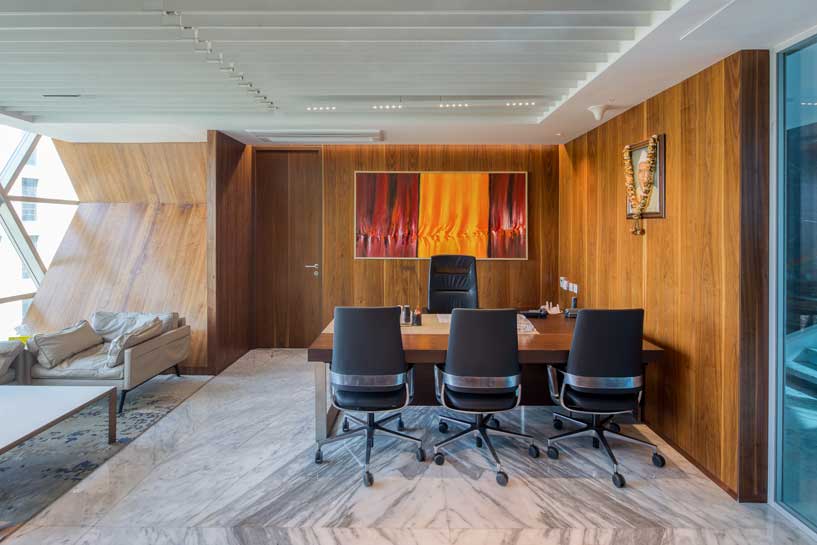

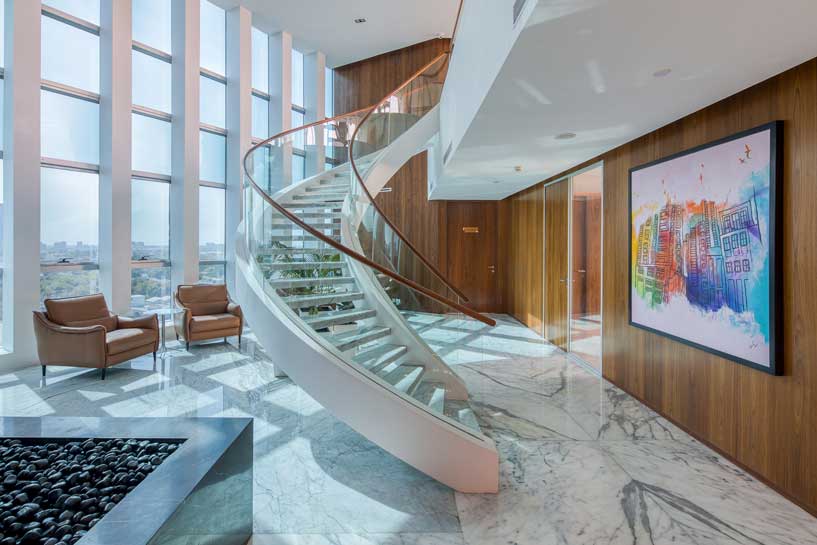

The interiors have been rendered with natural and earthy textures, evident with the use of stone and wood in the indoor spaces. Biophilia has been induced in the design as a user wellness strategy through the incorporation of indoor plants and green walls in interior spaces. The false ceiling has been designed to contain radiant baffle aluminium fins carrying chilled water to stimulate space cooling.
Sustainable Building Design
The design challenge posed by the hot and dry climate of the area has been viewed as an opportunity to seek sustainability and elevate building efficiency in an inclusive design approach the architects. Efficiently designed external shading devices on the facade prevent intense and harsh heat from entering the interiors. The strategic configuration of the louvres on the elevation obstructs direct solar radiation from permeating into interior spaces through the glazing, thereby reducing heat ingress indoors and ultimately reducing the load on active energy systems.
Tthe control of translucency of the shading elements concealed in the façade is manifold, elevating aesthetics, ensuring thermal comfort and augmenting day-lighting requirements. The solid structural cores have been placed facing the South and Southwest to restrain the office floor plate from excessive heat gain.
Also Read: Synergy Designs A Smart, Elegant and Biophilic Corporate Office For M3M SmartWorld in Gurugram
A glass skylight has been engineered to project out of the double-height reception lobby, supplying ample natural light into the space while tactfully being shaded by the tower itself. An effective glazing system has been devised to maximise daylight in indoor spaces while regulating heat gain and glare control.
Electro-chromic glass, also known as smart glass or electronically switchable glass that automatically changes opacity and tint to control the visible light transmittance and solar heat gain has been employed on the West elevation and the skylight glazing in the reception area. The triangulated three-dimensional panels on the North-East facade have been fabricated with high-performance glazing technology that aids in energy efficiency. The technique of radiant baffle cooling has been adopted for almost 80 per cent of the office space, facilitating a reduction in energy demand by almost 35 per cent if compared to a conventional mechanical cooling system.
Sustainability has been evaluated as a comprehensive approach in the project, encompassing various aspects such as systematic site study, methodical zoning, optimised form, building orientation, enhanced glazing technology, dead mass strategy and precise design details. The company’s ethos and vision statement - "To be the leading infrastructure organization admired by all stakeholders with sustainable growth through the process, people and innovation” has been upheld by careful design interventions that elevate the notion of inbuilt sustainability of the iconic structure, dually performing as an energy-efficient and cost-effective edifice.
Project Details
Typology: Corporate office
Name of Project: Monte Carlo
Location: Bodakdev, Ahmedabad
Name of Client: Kanubhai Mafatlal Patel
Name of Client’s Firm: Monte Carlo Ltd.
Principal Architect: Edifice Consultants Pvt. Ltd.
Design Team: Naveen Thomas, Aneesh Kumar
Interior design Team: Mahesh Hirapara, Sameer Manjarekar
Site Area (sq ft & sq m): 0.5 Acres
Built-Up Area (sq ft & sq m): 60,000 sq ft
Photographer: Umang Shah
Products/ Vendors
ACP / Glass / Concrete: ACP – Aludecor, Glass- Saint Gobain
Sanitaryware / Fittings: Kohlar
Flooring: Interface
Furniture: HNI, JMM, Nurus, Pedrali, Frezz
Lighting: Light lab
Paint: Asian paint
Elevator: Mitsubishi
Consultants
Structural: Ducon Consultant Pvt. Ltd.
Mechanical: Design Bureau
Electrical: Design Bureau
Landscape: Roots Design
HVAC: Design Bureau
Plumbing: Design Bureau
Façade: Façade India Testing (FITI)
Builder / Developer: MCL [Monte Carlo Limited] and ANJ
Contractors
Structural: A field intra
Mechanical: Kamnath intra
Electrical: Power Plan Electrical
Civil: MCL & ANJ
Landscape: Irrigation management
HVAC: Pranam Technology & 99 watts
Plumbing: pappu S. Gaud
Façade : Kaskal Façade Pvt. Ltd.
About the Firm
Edifice Consultants Pvt. Ltd. is one of India's premier design consultancies quartered in Mumbai. Founded in 1989 by Ravi Sarangan and Sanjay Srinivasan with the aim to practice collaborative architecture, it has as many design philosophies as it has designers – with sensitivity to culture, context, and the environment the paramount value that ties them together. Today, over 33 years and more than 1200 projects later, Edifice Consultants is one of the country's largest and most impactful design practices. While the firm handles projects of diverse sizes – from interior design to architecture to urban design, across diverse typologies – it has striven to keep its idealism untarnished through them all. The practice has fostered the growth stories of prominent organisations such as Infosys, Tata Consultancy Services, Cap Gemini, Taj Group of Hotels, and JSW, through an enduring association of over two decades. Multiple awards and felicitations reinforce the eminence of both the practice and its projects
Ravi Sarangan, Principal Architect and Co-Founder, Edifice Consultants Pvt. Ltd.
